bearing ball screw end support

Deep groove ball bearing with seals or shields

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.Integral sea

ling prolongs bearing service life

Simple, versatile and robust design

Low friction and high-speed capability

Accommodate radial and axial loads in both directions

Require little maintenance

Knowledge and introduction of bearings    :

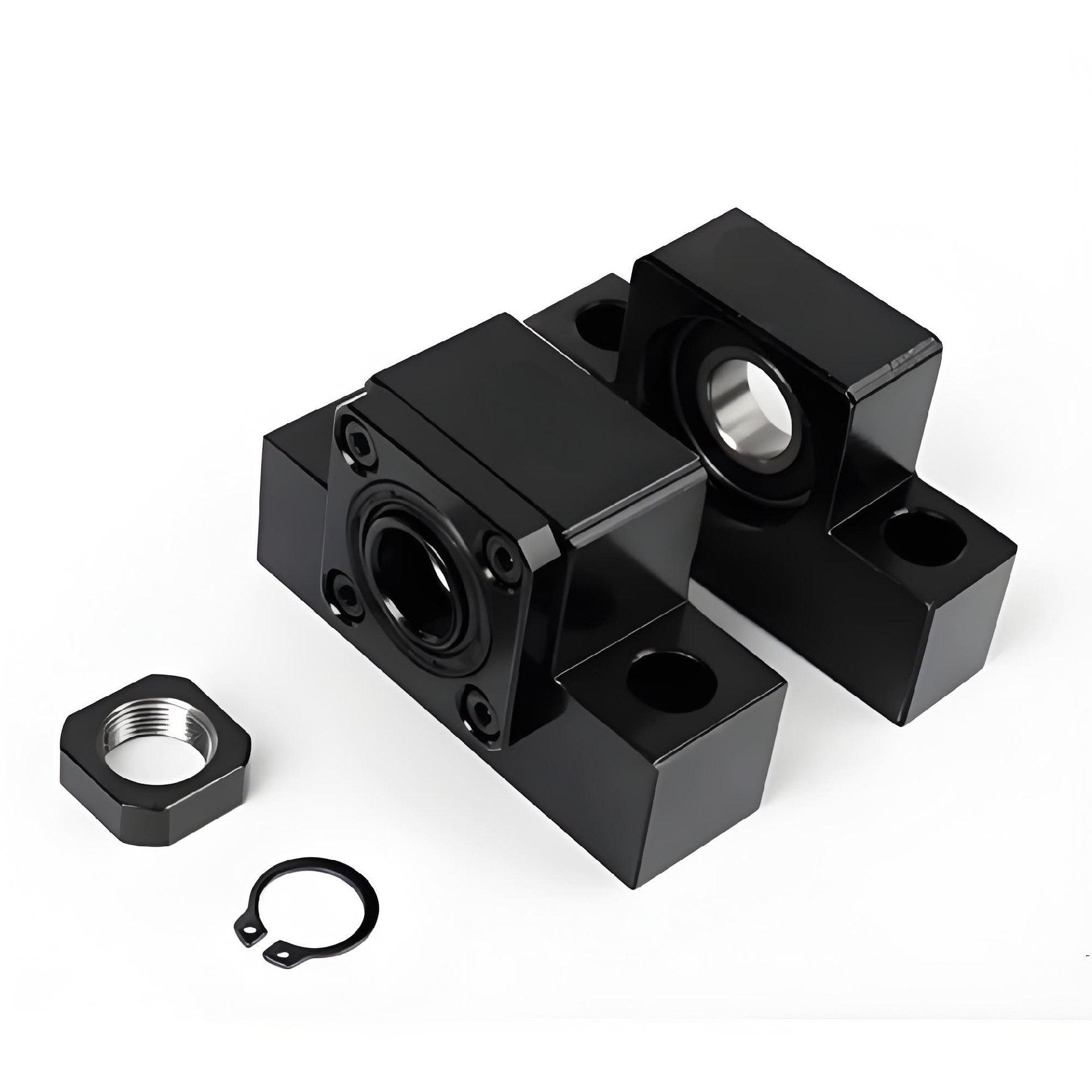

"Bearing ball screw end support" refers to a specialized structural component used to support the end of a ball screw in a mechanical system. Below is a detailed introduction to this component in English:

Overview

The bearing ball screw end support is a crucial element in many precision machinery and automation systems. It provides stable support for the end of a ball screw, ensuring accurate positioning and smooth movement of the mechanical components connected to it. This support structure typically consists of a bearing, a bearing housing, and other associated components.

Key Features

1. Bearing Type:

• The type of bearing used in the ball screw end support depends on the specific application and operating conditions. Common options include deep groove ball bearings, angular contact ball bearings, and other specialized bearings.

• These bearings are designed to support radial and axial loads, providing high stiffness and precision.

2. Bearing Housing:

• The bearing housing is a rigid structure that holds the bearing in place.

• It is typically made of high-strength material to ensure durability and stability.

• The housing may also include sealing options to protect the bearing from contaminants.

3. Precision Adjustment:

• The ball screw end support often includes precision adjustment mechanisms to allow for fine-tuning of the positioning accuracy.

• These mechanisms may include adjustable preload, preload adjustment screws, or other precision adjustment tools.

4. Mounting Options:

• The bearing ball screw end support can be mounted in various ways, depending on the specific application.

• Options include flange mounting, threaded mounting, or other custom mounting solutions.

Applications

The bearing ball screw end support is widely used in precision machinery and automation systems, including:

• CNC Machines: They provide accurate positioning and movement of the cutting tools in computer numerical control (CNC) machines.

• Robotic Systems: They support the movement of robotic arms and other components in robotic systems, ensuring smooth and precise operation.

• Automated Assembly Lines: They are used in automated assembly lines to support the movement of various components and tools.

• Precision Testing Equipment: They are found in precision testing equipment, such as coordinate measuring machines (CMMs), to ensure accurate measurements and positioning.

Maintenance and Care

To ensure the long-term performance and reliability of the bearing ball screw end support, regular maintenance and care are essential. This includes:

• Lubrication: Regular lubrication of the bearing is crucial to reduce friction and wear. The type and frequency of lubrication depend on the specific application and operating conditions.

• Inspection: Regular inspections should be conducted to check for signs of wear, damage, or contamination.

• Cleaning: The bearing and housing should be cleaned regularly to remove any contaminants that may have entered the system.

• Replacement: If the bearing shows signs of excessive wear or damage, it should be replaced promptly to prevent further damage to the machinery.

In conclusion, the bearing ball screw end support is a critical component in precision machinery and automation systems. Its design and construction ensure stable support for the end of a ball screw, providing high stiffness and precision for accurate positioning and movement. Regular maintenance and care are essential to ensure its long-term performance and reliability.

For further details on this product please directly contact our sales department under shh@dmsw.com
